Engine Type
ProStar 4-Stroke DOHC Single Cylinder
Drive System Type
One Touch On-Demand AWD/4WD
Fuel System/Battery
Electronic Fuel Injection / 340 CCA
Cylinders Displacement
567cc
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting
Engine Braking System (EBS)
Equipped
Wheelbase
56 in (143.2 cm)
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Fuel Capacity
6.75 gal (25.5 L)
Ground Clearance
11.5 in (29 cm)
Payload Capacity
705 lb (320 kg)
Estimated Dry Weight
931 lb (422 kg)
Bed Box Dimensions (L X W X H)
37.5 x 19.5 x 6.5 in (95 cm x 49.5 cm x 16.5 cm)
Overall Vehicle Size (L X W X H)
92 x 49 x 51 in (234.8 x 123.8 x 130.6 cm)
Lighting
LED POD High Beam, LED Low Beam Headlights, Dual LED Brake Lights/Tail Lights
Cargo System
5 Gal (18.9 L) Front Dry Storage, Lock & Ride Dump Box Rails & Rear Racks, Tie Down Rails in Dump Box
Instrumentation
All Digital Gauge, Geofencing, Speed Limiter, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light
Other Standard Features

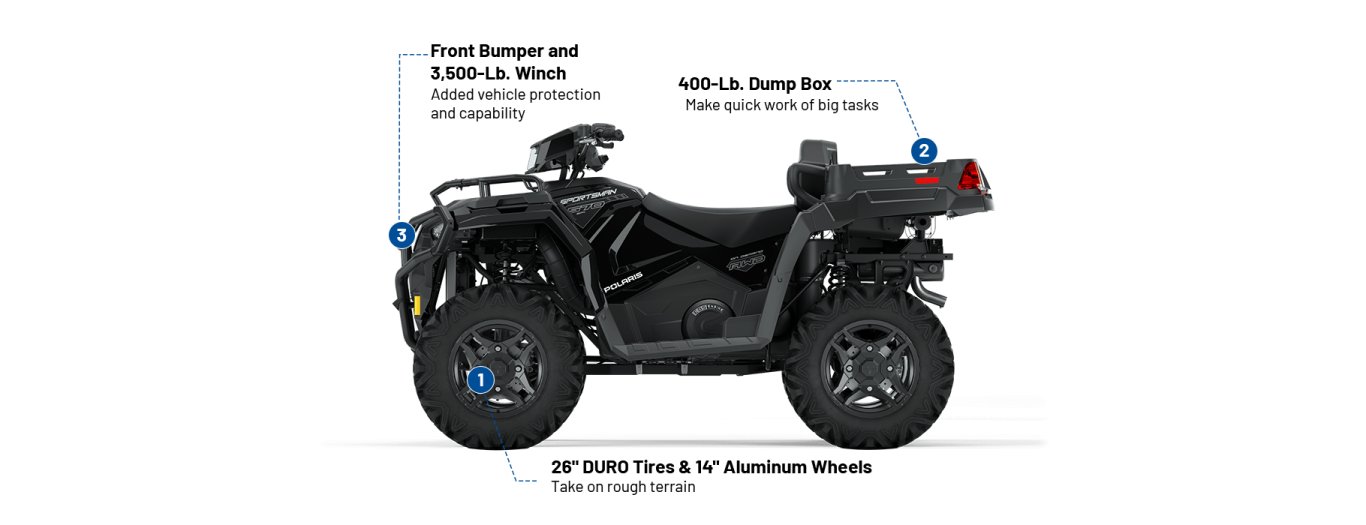

Front Trail Bumper, 3,500 lb Polaris HD Winch, Front Rack Extender, Bed Box, Ride Control (Easy Effort Throttle, Speed Limiting, Geofencing, PIN Activated Security System), Drive Modes, Painted Plastics, Front and Rear A-Arm Guards, Turf Mode
