Engine Type
ProStar 4-Stroke DOHC Single Cylinder
Drive System Type
One Touch On-Demand AWD/4WD
Fuel System/Battery
Electronic Fuel Injection / 340 CCA
Cylinders Displacement
567cc
Transmission/Final Drive
Automatic PVT P/R/N/L/H In-line Shifting
Engine Braking System (EBS)
Equipped
Wheelbase
86.5 in (219.7 cm)
Hitch Type
Standard 2 in (5.08 cm) Receiver
Fuel Capacity
6.75 gal (25.5 L)
Ground Clearance
11.5 in (29 cm)
Payload Capacity
1,115 lb (507 kg)
Estimated Dry Weight
1187 lbs (538 kg)
Bed Box Dimensions (L X W X H)
38 x 39 x 8 in (96.5 x 99.1 x 20.3 cm)
Overall Vehicle Size (L X W X H)
119 x 49.6 x 52.7 in (302 x 126.2 x 133.9 cm)
Lighting
LED POD High Beam, LED Low Beam Headlights, Dual LED Brake Lights/Tail Lights
Cargo System
5 Gal (18.9 L) Front Dry Storage, Lock & Ride Dump Box Rails & Rear Racks, D-rings in Dump Box
Instrumentation
All Digital Gauge, Geofencing, Speed Limiter, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light
Other Standard Features

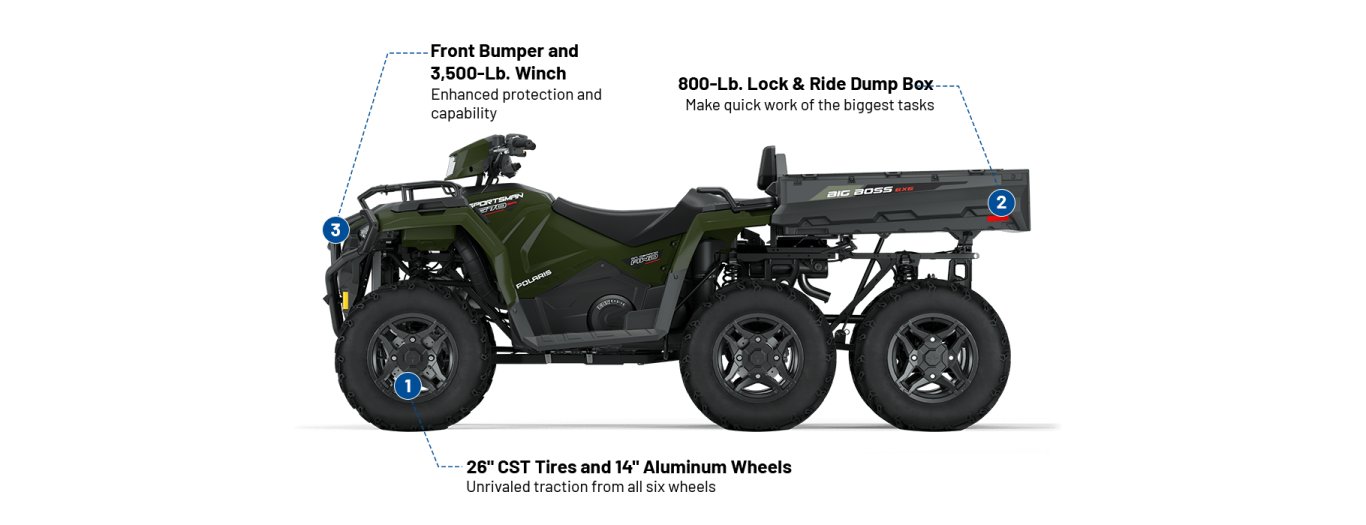

Front and Rear A-Arm Guards, Front Trail Bumper, 3,500 lb Polaris HD Winch, Front Rack Extender, Bed Box, Ride Control (Easy Effort Throttle, Speed Limiting, Geofencing, PIN Activated Security System), Drive Modes
